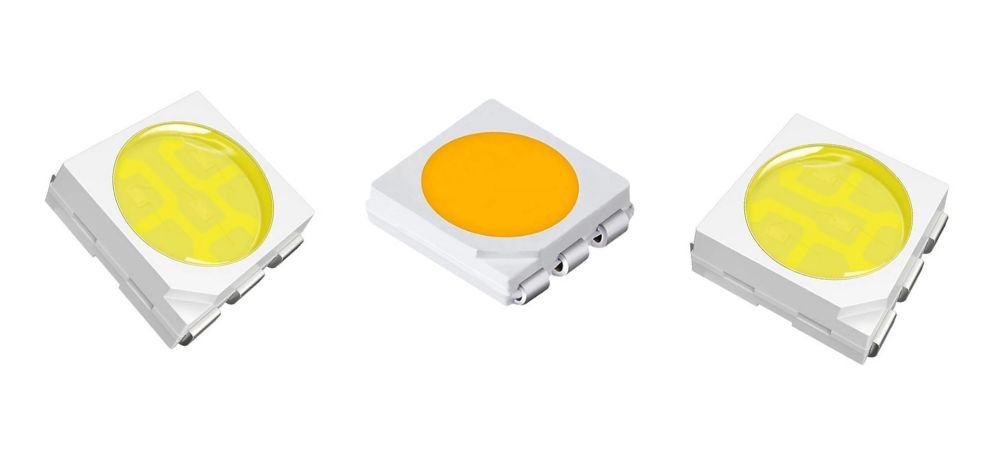

The 5050 LED Series by Premiere Electronics is a versatile and powerful SMD LED featuring a 5.0mm × 5.0mm package, typically incorporating three LED chips for enhanced brightness and color mixing capabilities. Known for its robust design, excellent heat dissipation, and high luminous output, this series delivers vibrant illumination with wide viewing angles (up to 120°). Available in various configurations including single-color white (warm to cool), RGB, and high-power variants up to 5W+, it supports voltages from 3V to 9V or higher.

Premiere Electronics is your reliable source for premium LED solutions in India. We provide a full range of SMD LEDs including the popular 5050 series, along with other components, offering superior quality, competitive prices, and prompt delivery nationwide. Our dedication to innovation and customer satisfaction positions us as a top supplier for lighting manufacturers and assemblers.
The Hongli 5050 LED Series offers high brightness and strong performance in a 5.0mm × 5.0mm SMD package. It supports single-color and RGB options, making it ideal for strip lights , signage, and commercial illumination applications.
| Product | Voltage (vF) | Lumens | Part Number |
|---|---|---|---|
| 5050-5w-6v-6500k | 6.6-7.0 | 800-860 | HL-EMC-5050D46W-B4C2-S1-HR1-F-P6 |
| 5050-5w-6v-3000k | 6.6-7.0 | 780-850 | HL-EMC-5050D46W-B4C2-S1-HR1-F-P6 |
| 5050-5w-6v-5700k | 6.6-7.0 | 800-860 | HL-EMC-5050D46W-B4C2-S1-HR1-F-P6 |
| 5050-5w-6v-4000k | 6.6-7.0 | 800-860 | HL-EMC-5050D46W-B4C2-S1-HR1-F-P6 |
The Everglow 5050 LED Series provides exceptional brightness, energy efficiency, and versatility with advanced chip technology. Available in high-power configurations and multiple colors, suitability for demanding lighting projects.
| Product | Voltage | Lumens | Part Number |
|---|---|---|---|
| 5050-5W-6V-White | 5.80-6.20 | 850-900 | EG-5050-506V-8XX-H1 |
| 5050-5w-6v-White-(Higher Lumens) | 5.80-6.20 | 950-1000 | EG-5050-506V-8XX-H2 |
| 5050-5w-6v-Red | 5.80-6.20 | 130-180 | EG-5050-506V-RED-H1 |
| 5050-5w-6v-Blue | 5.80-6.20 | 450-460 | EG-5050-506V-BLUE-H1 |
| 5050-5w-6v-Green | 5.80-6.20 | 750-800 | EG-5050-506V-GREEN-H1 |
| 5050-5w-6v-Pink | 5.80-6.20 | 450-550 | EG-5050-506V-PINK-H1 |
| 5050-5w-6v-Amber | 5.80-6.20 | 650-700 | EG-5050-506V-AMBER-H1 |
| 5050-5w-6v-Chip Green | 5.80-6.20 | 500-550 | EG-5050G20-2C6Z-GL20 |
